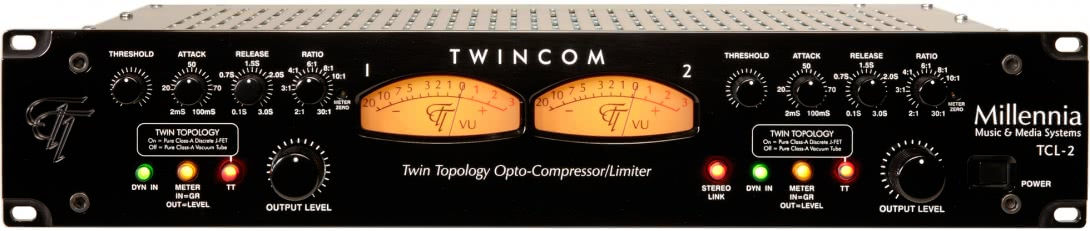

TCL-2 студийный двух канальный ламповый опто-компрессор/лимитер и двух канальный класс А транзисторный опто-сомпрессор/лимитер

297 628 р.

TCL-2 студийный двух канальный ламповый опто-компрессор/лимитер и двух канальный класс А транзисторный опто-сомпрессор/лимитер
товар отсутствует Артикул: TCL-2 MILLENNIA
  • Two paths to perfection with Twin Topology™
  • Stereo optical compressor/limiter with unprecedented sonic purity & integrity
  • All triode 300 V vacuum tube signal path or...
  • All discrete J-FET solid state signal path
  • Both topologies are entirely transformerless, high voltage, pure Class A
  • Minimalist design: only one active stage in the audio path
  • Threshold: Infinity to + 20 dBu
  • Ratio: 1.4 : 1 to 30 : 1
  • Attack: 2 to 100 ms
  • Release: 100 ms to 3 s
  • Large meters: switchable for VU or Gain Reduction
  • Constructed for demanding professional applications
  • Ultra-Premium components throughout
  • Gold relays, connectors, switches, tube sockets
  • Silver Teflon power wiring
  • Mogami Neglex OFC audio wiring
Threshold Range: Infinite to +20 dBu, Continuously Adjustable
Maximum Output Level: > + 32 dBu
Maximum Input Level: + 30 dBu
Output Gain Control: Continuously Adjustable
Frequency Response: +0 / -3 dB sub 2 Hz to beyond 100 kHz
Noise (20 Hz - 22 kHz): -87 dBu (SS), -82 dBu (VT)
Attack Range: 2 ms to 100 ms, Continuously Adjustable
Release Range: 100 ms to 3.0 S, Continuously Adjustable
Compression Ratio Range: minimum 1.4
THD + Noise (20 Hz - 30 kHz): < .01 %, typ .003 % (VT or SS)
Common Mode Rejection Ratio (10 Hz - 20 KHz, 100 mV C.M.): > 50 dB, Typ > 70 dB
Dynamics Bypass For Each Channel: Yes
Meter Gain Reduction Or VU Selection: Yes
Stereo Linking Switch: Yes
Input Impedance: 25k Ohms
Minimum Output Load Impedance: 300 Ohms (SS), 1k Ohms (VT)
Recommended Minimum Load: 600 Ohms (SS), 3k Ohms (VT)
Output Impedance: < 5 ohms (SS), < 300 ohms (VT)
Twin Topology Compressor Amplifiers Switch In: Pure Class-A Discrete J-FETs
Switch Out: Pure Class-A Triode Tubes
Power Consumption: 55 watts maximum
Power Requirements Selectable: 100-120, 200-240 V ac, 50/60 Hz
Dimensions/Shipping Weight: 19” W x 12.5” L x 3.5” H, 26 lbs.
